TUBE CARRIAGESCompatible with the Bead Ruptor Elite
Optimize your Bead Ruptor Elite with our range of tube carriages. Designed for efficiency and versatility, these carriages ensure precise sample handling. We offer options for various tube sizes and configurations to meet all your lab's needs. From small sample tubes to large volume processing, our tube carriages provide the flexibility and reliability required for your research.
1.5 mL Microcentrifuge Tube Carriage
Compatible with most 1.5 mL microcentrifuge tubes
- Capacity: 24 x 1.5 mL microcentrifuge tubes
- Volume Range: 200 μL - 1 mL
- Force Limit: Maximum speed of 8 m/s
- Part Number: 19-372
2 mL Tube Carriage
Requires Omni 2 mL tubes
- Capacity: 24 x 2 mL skirted screw cap tubes
- Volume Range: 200 μL - 1.5 mL
- Force Limit: Maximum speed of 8 m/s
- Part Number: 19-373
48 Place 2 mL Tube Carriage with 2 mL Finger Plate
Requires Omni 2 mL tubes
- Capacity: 48 x 2 mL skirted screw cap tubes
- Volume Range: 200 μL - 1.5 mL
- Force Limit: Maximum speed of 7 m/s
- Part Number: 19-378
7 mL Tube Carriage
Requires Omni 7 mL tubes
- Capacity: 12 x 7 mL skirted screw cap tubes
- Volume Range: 0.5 mL - 5 mL
- Force Limit: Maximum speed of 6 m/s
- Part Number: 19-374
15 mL Tube Carriage with 15 mL Finger Plate
Requires Omni 15 mL tubes
- Capacity: 12 x 15 mL screw cap conical centrifuge tubes
- Volume Range: 500 μL - 10 mL
- Force Limit: Maximum speed of 5 m/s
- Part Number: 19-375

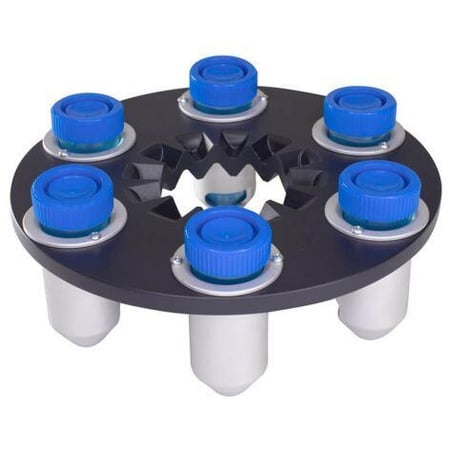

30 mL Tube Carriage with 30 mL Finger Plate
Requires Omni 30 mL tubes
- Capacity: 6 x 30 mL tubes
- Volume Range: 5 mL - 30 mL
- Force Limit: Maximum speed of 5 m/s
- Part Number: 19-376-HT
50 mL Tube Carriage
Requires Omni 50 mL tubes
- Capacity: 3 x 50 mL Tubes
- Volume Range: 5 mL - 50 mL
- Force Limit: Maximum speed of 5 m/s
- Part Number: 19-377
Tube Carriages
Optimize your Bead Ruptor Elite with our range of tube carriages. Designed for efficiency and versatility, these carriages ensure precise sample handling. We offer options for various tube sizes and configurations to meet all your lab's needs. From small sample tubes to large volume processing, our tube carriages provide the flexibility and reliability required for your research.
Bead Ruptor™ Bead Tube Lysing Kits include everything you need to homogenize efficiently.
Bead beating is the most effective and versatile lysis method available. OMNI International offers users the ultimate flexibility with a range of bead beating tubes and lysing matrices to support efficient homogenization of a wide range of samples. Bead Ruptor™ bead beating tubes can be purchased in bulk or pre-filled with an optimized amount of lysing matrix to provide efficient, consistent, and high-yield sample homogenates. OMNI Bead tubes should be used exclusively with OMNI Bead Ruptor™ Homogenizers.
Features
- Wide variety of lysing matrices available
- Tubes are optimized to withstand high impact forces
- Multiple purity grades to ensure high analyte integrity
Bead mill homogenizers allow for closed vessel and multiple sample processing, minimizing risk of cross-contamination. Our homogenizers and bead beating tubes are very beneficial to various laboratories that process a wide range of sample volumes.
| Bead Media | Bead Size | Bead Quantity | Description | Order # |
|---|---|---|---|---|
 |
0.1 mm | 400 g | Fills 500 x 2 mL tubes | 19-641 |
| 0.5 mm | 400 g | Fills 500 x 2 mL tubes | 19-642 | |
 |
0.15 mm | 500 g | Fills 500 x 2 mL tubes | 19-643 |
| 0.7 mm | 500 g | Fills 500 x 2 mL tubes | 19-644 | |
 |
0.1 mm | 500 g | Fills 500 x 2 mL tubes | 19-683 |
| 0.5 mm | 500 g | Fills 500 x 2 mL tubes | 19-684 | |
| 1.4 mm | 325 g | Fills 500 x 2 mL tubes | 19-645 | |
| 2.8 mm | 325 g | Fills 500 x 2 mL tubes | 19-646 | |
| 6.5 mm | 325 g | Fills 500 x 2 mL tubes | 19-682 | |
 |
2.4 mm | 500 g | Fills 500 x 2 mL tubes | 19-640 |
