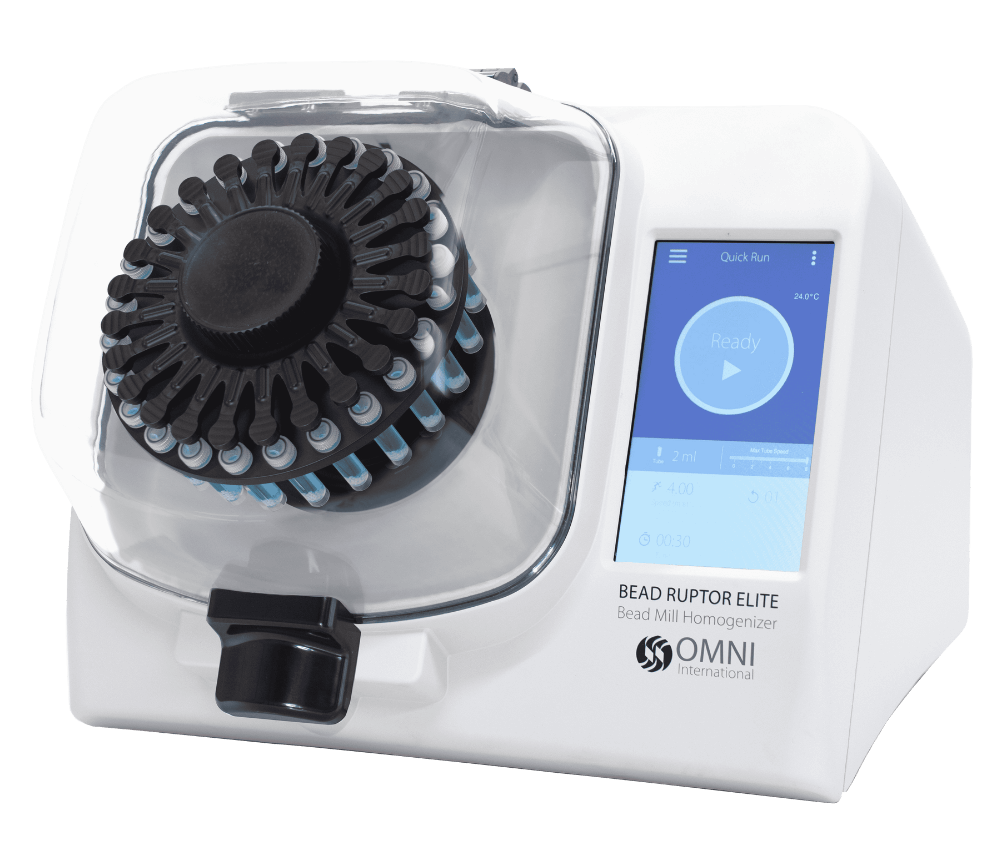

BEAD RUPTOR ELITE

THE INDUSTRY’S MOST POWERFUL HOMOGENIZER
SKU: 19-042E
br-elite-reflection-web-home

SAY GOODBYE TO INCONSISTENT SAMPLE DISRUPTION, HEAT-INDUCED DEGRADATION, AND ANNOYING WORKFLOW BOTTLENECKS WITH THE POWERFUL BENCH TOP BEAD RUPTOR ELITE.

Homogenization sets the stage for everything that follows, and the quality of your starting material directly impacts the success of downstream applications.



The Bead Ruptor ELITE bench top homogenizer is ideal for demanding laboratories seeking unmatched reliability, power and efficiency in grinding, lysing and homogenization of even the toughest samples.



The ELITE is built on the only user-centric homogenization platform that consistently delivers rapid throughput and flexibility for up to 48 samples at a time, improving your sample yield without compromising sample integrity.

  • Processing range: 25 µL to 50 mL
  • Run Time: 1 second to 9:59 minutes
  • Performance range: 0.8 – 8 m/s in increments of 0.15 m/s
  • Number of Cycles: 1-10
  • Safety: integrated lid lock to prevent lid opening during operation
  • Waterproof seal
  • Dimensions: W: 15” (38.1 cm), D: 17” (43.2 cm), H: 13” (33.0 cm)
  • No cool down
  • Unlimited protocols
  • Touchscreen with user defined programs, tube configuration and parameter control
  • Power rating: 115-230 VAC, 50/60 Hz
  • Product weight: 65 lbs. (29 kg)
  • Warranty: one year
  • Standards approval: TUV, CE and UKCA approved

LITERATURE DOWNLOADS

Ready to Purchase?

Phone

To buy direct, please call 770-421-0058
to place your order.

Email

Click the button below to get in contact via Email to place your order.

Online

You will be directed to our parent company Revvity's website to complete your purchase.

Unmatched Processing Power

Designed to handle almost anything you throw at it, the ELITE's near silent drive mechanism delivers the highest range of impact forces through advanced tube acceleration, displacement, and motor force.

Preserve Sample Integrity and Consistent Results

Minimized heat generation ensures sensitive biomolecules remain intact and functional, while efficient sample disruption without adverse heating effects guarantees reproducible results across batches.

Effortless Operation

The ELITE’s modern, user-centric design eliminates both front and top-loading challenges, making sample prep safer, simpler and more intuitive, enhancing overall lab productivity.

OMNI-BRelite

Engineered for the Most Demanding Environments

Process Samples the Others Can't

PROCESS THE MOST DIFFICULT SAMPLES IN SECONDS.



Conquer the most challenging samples with the Bead Ruptor ELITE. Unmatched G-Forces deliver superior homogenization power while our secure inclined carriage simplifies tough sample processing.


Achieve consistent, precise results with less contamination risk. Unlock science with ELITE.

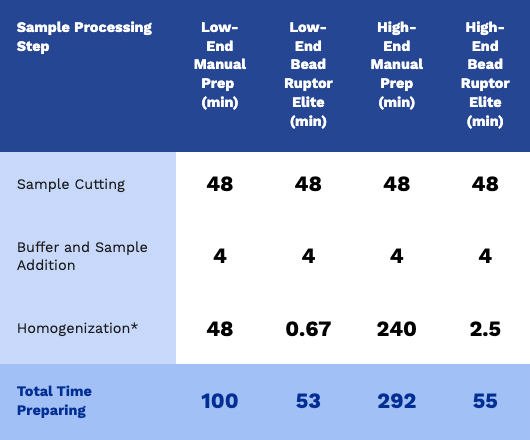

Learn how we significantly reduced the required sample preparation time, improving sample throughput for molecular genetic direct identification of the presence of dermatophytes, yeasts, and molds.

Reliable Repeatability

STAY AHEAD OF COMPETITORS AND SAFEGUARD YOUR REPUTATION.



Maximize lab productivity with the Bead Ruptor ELITE, designed for high-throughput environments. Cut down maintenance and bypass sample heating issues with our advanced programming and durable design, all while handling hundreds of samples each day with ease.


Accelerate sample prep and stay ahead in high-paced research.

Read how we combined the Bead Ruptor ELITE™ with the chemagic™ 360 instrument for a robustly reproducible workflow resulting in high qualities and quantities of DNA from bovine liver samples.

Get Prepped for AI

UNLEASH ARTIFICIAL INTELLIGENCE INSIGHTS BY FUELING DISCOVERY WITH OPTIMAL SAMPLE OUTPUT.



Boost your AI algorithms with the unparalleled data volume and quality generated with ELITE, bolstering your research with richer, more detailed datasets.


Leverage ELITE's enriched sample output to enhance the accuracy of your AI's predictive analysis, crucial for groundbreaking personalized treatment plans and research discoveries.

Discover how to avoid incomplete lysis and recovery of targeted intracellular analytes, resulting in tougher to lyse samples being misrepresented as smaller percentages of populations, and other easier to lyse organisms from being over represented.

Trusted by the World’s Top Labs

BAKO
Washing University
Regeneron
Pfizer
NIH
Mount Sinai
Abbvie

Trusted by the World’s Top Labs

BAKO
Washing University
Regeneron
Pfizer
NIH
Mount Sinai
Abbvie

Unmatched Power, Consistency, and Versatility.

ELITE-inlab-sq-1

Consistently Disrupt with the Industry's Only Inclined Carriage.

Featuring our distinctive and user-centric Inclined Carriage, ELITE is engineered to ensure your samples undergo thorough and consistent disruption, while reducing sample variability.



ELITE's unique design optimizes the movement of beads within sample tubes, promoting efficient bead-to-sample interactions, resulting in faster and more thorough sample disruption.



Your samples spend less time undergoing mechanical processing, generating less heat that can be detrimental to samples.



With ELITE, you get:

  • Preservation of Sample Integrity: Minimized heat generation ensures sensitive biomolecules remain intact and functional.

  • Consistent Results: Efficient sample disruption without the adverse effects of heating ensures reproducible results across batches.

  • Optimized Lab Workflows: Reduced risk of heat-related sample alterations means fewer re-runs and more reliable data in downstream applications.

charts

Increased Yields, Undeniable Integrity

Low mRNA yields can result in incomplete data sets, leading to inaccurate conclusions and repeat experiments. This can drain your resources, time, and potentially precious samples, while delaying processing and research outcomes.

ELITE's Inclined Carriage ensures thorough and consistent sample disruption, often leading to higher mRNA yields critical to the accuracy and reliability of outcomes.

In this example, data indicates a four-fold increase in mRNA yield when using the Bead Ruptor ELITE. The mRNA yields ranged from 26 to 99 μg, compared to the 9 - 30 μg achieved through dounce homogenization.

Integrity and Purity

Even with enhanced disruption efficiency, ELITE maintains the integrity and purity of the mRNA samples.



As shown, the 260/280 nm ratios demonstrate that mRNA purity remains comparable between ELITE bead milling and traditional homogenization techniques, ensuring improved efficiency does not compromise sample quality.



Have Extra Heat-Sensitive Applications?

You can further protect sample integrity with the BR Cryo Cooling Unit — a seamless addition to ELITE that maintains samples from 4°C to ambient, helping you safeguard heat-sensitive molecules like RNA and proteins. Our innovative cryo system circulates chilled air (-100°C to -50°C) to dissipate heat, ensuring constant, controlled temperatures for optimal processing.
G-Force-Table

Silent, Relentless G-Forces and Performance.

Many labs struggle with processing tough samples due to traditional methods or inefficient bead mills, resulting in inconsistent sample processing and lost time.



Designed specifically to handle almost anything you throw at it, ELITE's drive mechanism delivers unmatched processing range leveraging tube acceleration, displacement, and motor force to deliver the highest range of impact forces available.



Our drive train isn't just powerful – it’s maintenance-free, designed for continuous operation and nearly silent performance.



No cool-downs. No interruptions. Just relentless performance.



With ELITE, you get:

  • Continuous Run Capability: Designed for back-to-back processing, eliminating unnecessary cool downs and wait times between runs.

  • Maintenance-Free: Bid farewell to constant upkeep, and focus on your research.

  • Whisper-Quiet Processing: Experience power without the typical noise associated with traditional disruption methods.

software-callout

Design, Meet Science.

ELITE’s modern and user-centric design eliminates both front and top-loading challenges.



With our user-centric inclined sample access and interface, we've made every interaction effortless, putting precision and control right at your fingertips.

  • Ergonomic Inclined Design: Specifically crafted to bench height, easing the strain on wrists and improving sample loading efficiency.

  • Intuitive User Interface: Seamlessly create and navigate 99 programmable memory settings with our multilingual interface, ensuring your protocols are a touch away.

  • Safety-First Approach: Integrated lid lock ensures secure operation, preventing unintentional openings during active processing.

  • Optimate™ Sample Prep Software: Tailor-made for quick, easy, and responsive repeatability.

bead-ruptor-alt

Boundlessly Versatile.

Whether you're working with the toughest samples, or a variety of sample sizes, the Bead Ruptor ELITE quickly and easily adapts.



ELITE opens up worlds of possibilities:

  • Broadest Sample Compatibility: Accommodates a vast range from the toughest tissues, bone, and teeth to seeds, catering to multiple industries from Life Science to Cosmetics, or from Diagnostics to Environmental.

  • Widest Range of Accessories: Adaptable to any sample size with accessories ranging from 24 x 0.5 mL to 3 x 50 mL, ensuring customization for varied research needs.

  • Flexible Tube Sizing: ELITE accommodates a variety of tube sizes, eliminating the need for multiple machines. Ensure both cost efficiency and adaptability based on a wide range of tube options for your lab's needs.



Experience ELITE freedom – we’ve eliminated traditional obstacles, giving you unparalleled flexibility in the lab.

Consistent Disruption
Unparalleled Yields
Unmatched G-Force
Design, Meet Science
Boundlessly Versatile

The Industry's Only User-Centered Design + Engineering

Features BR Elite Competitor 1 Competitor 2 Competitor 3
Unique inclined carriage motion designed to minimize sample heating
Engineered for highest sample yield and quality
Broadest G-Force for precision tuning of homogenization
Accommodates different samples and size within single device
User-Centric inclined carriage for ease of use
No cool down time between sample runs
Integrated transparent locking lid for improved safety and access
Industrial, no-maintenance build for lowest total cost of ownership
Broadest tube size compatibility for unparalleled flexibility in sample size
Near silent operation (<72dB) minimizing noise
OMNI-bead-ruptor-elite-5-star-review

5.0 RATING

“Powerful homogenization in a small footprint. A must-have for every laboratory.”


Application Area: Trace residue analysis in crop and environmental samples.


"Our Bead Ruptor has been an enormous time saver. Previously sample homogenization of multiple samples could be a bottleneck. Especially if multiple chemists needed to use our traditional homogenizers, which are expensive and take up a lot of bench space. The Bead Ruptor makes quick work of multiple samples at once."



– Steven Perez
   ADPEN Laboratories, Inc.

OMNI-bead-ruptor-elite-5-star-review

5.0 RATING

"Saved a great deal of time"



Application Area: Lyme disease surveillance results from adult ticks.


“We have been using the grinder quite a bit and have saved a great deal of time by using the device as opposed to hand macerating/grinding the samples.”



– Noor Tietze
   Department of Environmental Health
   Santa Clara County

OMNI-bead-ruptor-elite-5-star-review

5.0 RATING

“It is easier to use, safer (no solvent splashes), and quieter (no hearing protection required)”


Application Area: Homogenize animal tissues in organic solvents.


"We purchased this product to replace a traditional shearing homogenizer. It is easier to use, safer (no solvent splashes), and quieter (no hearing protection required). It is programmable, ensuring consistent handling of all samples. It processes up to 24 samples simultaneously. It is very powerful. We process most of our samples for two to three cycles at 10 to 15 seconds per cycle."



– Bonne Thompson
   UT Southwestern Med Ctr

SCHEDULE YOUR DEMO BELOW

Witness the revolutionary ELITE in action and see firsthand how it can supercharge your lab.

Book your personalized demo today – because excellence waits for no one.
