BEAD RUPTOR CRYO COOLING UNIT

brcryo

LITERATURE DOWNLOADS

BEAD RUPTOR CRYO COOLING UNIT

SKU: 19-8005

COOLING SYSTEM TO PROTECT HEAT SENSITIVE SAMPLES DURING HOMOGENIZATION



The BR Cryo Cooling Unit is compatible with the Bead Ruptor Elite and is designed to prevent the increase of sample temperature during the homogenization process. The friction generated through the bead milling process generates heat that is imparted to the sample. In order to maintain a constant processing temperature during homogenization, the BR-Cryo passes chilled air (-100°C to -50°C) into the sample processing chamber and across the sample tubes to dissipate heat.



Samples can be maintained at a temperature ranging from 4°C to ambient thus protecting heat sensitive samples such as RNA and proteins.



The BR Cryo can be used to maintain a constant temperature when extracting functional enzymes or volatile small molecules.



The BR Cryo Cooling Unit is not compatible with Tube Carriages > 7 mL or the 48 Position 2 mL Carriage

  • Dimensions: W: 9.0” (22.9 cm), D: 13.5” (34.3 cm), H: 11.5” (29.2 cm)
  • Weight: 16 lbs. (7.2 kg)
  • Cryo Chamber Volume:  1 L
  • Air Source Requirements: Compressed medical dry air (water < 5 ppm)
  • Air Source Pressure: 120 PSI
  • Cooling Source: Liquid Nitrogen or Dry Ice in Ethanol
  • Liquid Nitrogen Consumption: 1 L per 5 min of homogenization time
  • Dry Ice Consumption: 1 L of 0.5 L ethanol + 0.5 L dry ice per 90 minutes of homogenization time
  • Tube Compatibility: 0.5, 1.5, 2 x 24 and 7 mL Tube Carriages Only. Not compatible with tube sizes >7 mL or 48 Position 2 mL Carriage
  • Instrument Compatibility: BR Cryo is compatible with Bead Ruptor Elite (19-042E)
  • Warranty: One Year
  • Standards Approval: CE & UKCA Approved
Ready to Purchase?

Phone

To buy direct, please call 770-421-0058
to place your order.

Email

Click the button below to get in contact via Email to place your order.

Online

You will be directed to our parent company Revvity's website to complete your purchase.

Bead Ruptor 24 Cryo Cooling Unit Overview

  • Compatible with the Bead Ruptor 24
  • Adjustable cooling rate
  • Compatible with liquid nitrogen or dry ice with ethanol
  • BR-Cryo maintain sample temperatures from 4°C to ambient
  • Prevent protein degradation
  • Ensure RNA stability
  • Prevent enzyme activation
sample_temp_processing_time

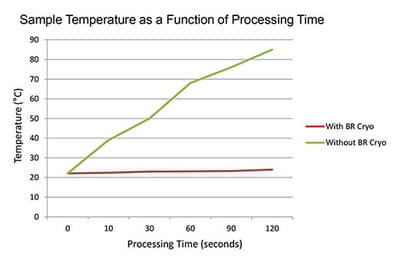

Intra-tube temperature monitoring during bead mill homogenization. 2 mL Omni reinforced tubes containing five 2.8 mm ceramic beads (Cat # 19-628) were filled with 1 mL H2O and processed at 7 m/s on the Bead Ruptor 24 for increasing time periods. Homogenization was performed with and without the use of the BR-Cryo cooling unit using liquid nitrogen as the cryo source. Intra-tube temperatures were monitored at each time point.
